Installation Guide 3

Introduction

Product description

The linear rudder position sensor (part number: M81188) is designed

for ‘bullhorn’ style hydraulic outboard steering systems.

It is totally weatherproof and designed to be mounted on the bullhorn

ram. It transmits the precise position of the boat’s rudder to the

autopilot.

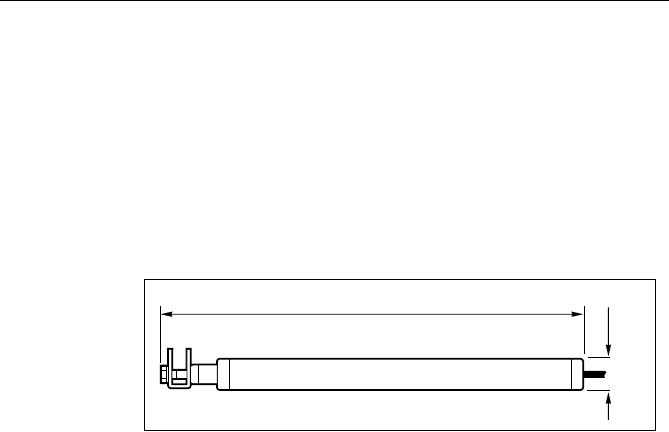

Linear rudder position sensor - dimensions

Parts supplied

The linear rudder position sensor package contains:

• this installation guide

• linear rudder position sensor

• spacers (x2)

• 80 mm (3.1 in) hose clamps (x2)

• U-bracket

• M8 nut and washer

• female spade connectors (x4)

425 mm (16.75 in)

32 mm

(1.3 in)

D5389-1

81006_3.book Page 3 Tuesday, May 22, 2001 1:03 PM
